320KG Hanging type EM Lock-LY320HL

Overview:
This item is magnetic lock that consists of an electromagnet and an armature plate used for access control door locks. By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut. When power off, the door will open. It is suitable for wooden door, glass door, metal door, fire-proof door,etc.

Features:
*320KG/700lbs magnetic lock for door access control system
*Secure NC mode: unlocked when power off, locked when power on
*Power supply: DC12V; holding force: 320KG/700lbs
*High quality and durable in performance
*Suitable for: wooden door, glass door, metal door, fire-proof door

Specifications:

Name:320KG Hanging type EM Lock

Model:LY320HL
Working Voltage:DC 12/24V

working cerrent: 320/250mA
Holding Force: 320KG/700lbs
Weight:2.2kg

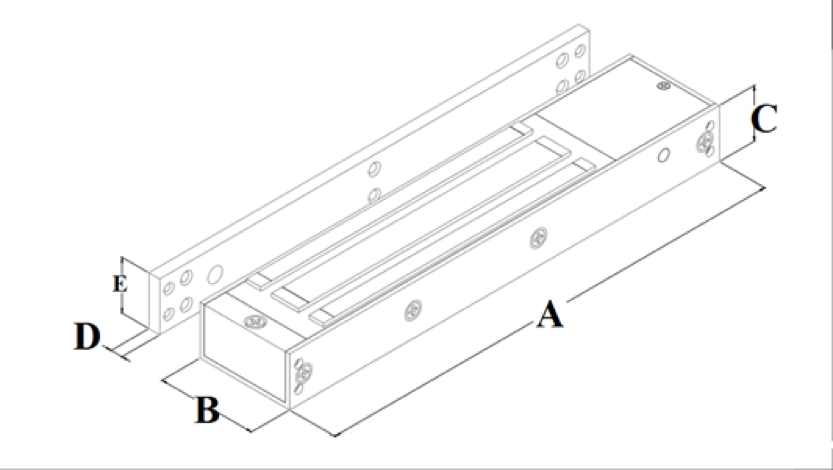

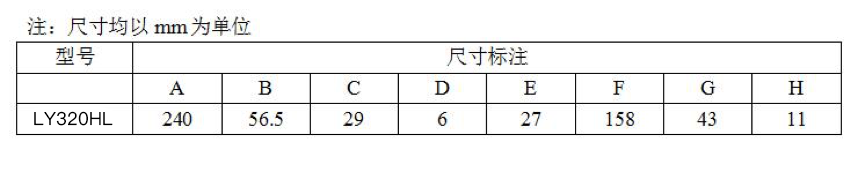

Lock Size: L240xW56.5xH29(mm)

Plate Size: L158xW43xH11.5(mm)

Package List:
1 * Electronic magnetic lock
1 * Armature plate
1 * Package of Mounting Screws
1 * User Manual(German/English)
